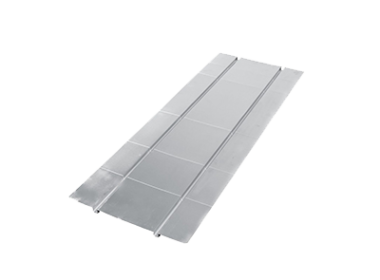

Aluminium Spreader Plate 390mm x 1000mm (Double Loop)

Premium range of 500 micron aluminium spreader plates feature omega shape pipe channels designed to securely hold pipe in place.

Available in: 200mm pipe spacing (2 pre-formed channels), for between 400mm joists.







View Product Information

Product Information

Download Factsheet

F04 - ALUMINIUM SPREADER PLATE SYSTEM High grade thick 400mm Aluminium spreader plates used for wood flooring are easily fixed across 400mm Joists using nails, screws or staples. Pipe is laid into the pre-formed omega-shape channels at 200mm pipe centres. Insulation below the spreader plates will ensure maximum performance from this system.

These can be fitted to wider joists please call for information.

  • 500 microns thick (+/- 10% tolerance).
  • Available in two sizes: 2 pre-formed channels at 200mm pipe spacing.
  • Suitable for 15/16mm pipe
  • 1000mm x 390mm
  • High grade aluminium
  • Easy to install
  • Rapid response
  • Lightweight
  • Fast to install

Pipe Spacing150mm or 200mm
pa_single-bulk1118
pa_pipe-spacing1397, 1398
Depth0.5mm / 500 microns thick (+/- 10% tolerance)
Length1000mm
Weight0.56kg
Width390mm
